Action Microsoft.Crm.Setup.Server.InstallConfigDatabaseAction failed. ---> System.Data.SqlClient.SqlException: Failed to load Msxmlsql.dll.

Hi,

Recently faced a very unusual error while installing CRM 2011 on Windows Server 2012 and SQL Server 2012 Business Intelligence edition on the same server.

Error message states something as below:

Action Microsoft.Crm.Setup.Server.InstallConfigDatabaseAction failed.---> System.Data.SqlClient.SqlException: Failed to load Msxmlsql.dll. Could not find prepared statement with handle 0. sp_xml_removedocument: The value supplied for parameter number 1 is invalid.

After searching for a hell lot of time on web about this error faced by anyone during CRM 2011 installation. I failed to find any thing relevant.

The error message above even did not have anything suspicious linking it back to CRM 2011 but rather seems more inclined towards SQL Server. I got an idea about checking the word sp_xml_removedocument in the folder of CRM 2011 installation files and that resulted in an sql file named "Reserved.sql" on the path \config\5.0\Scripts.

(Taking a little pause here, let me just tell you that the all scripts on this path are executed on the configuration database during CRM installation which sets the default values in the configuration tables)

So I manually tried to execute "Reserved.sql" in SQL Server Management Studio and found the same error about loading of Msxmlsql.dll assembly.

I searched Msxmlsql.dll on the SQL Server 2012 installation disk and found it but was unable to find the same in the installation folder on the server.

Voila !!! Caught the problem and so then the solution was just round the corner.

Solution:

Copy the missing files from installation disk location to the installation target folder on the server as below:

msxmlsql.dll
From the disk: \x64\Setup\sql_engine_core_shared_msi\PFiles\SqlServr\110\Shared\msxmlsql.ddl
To : \Program Files\Microsoft SQL Server\110\Shared

msxmlsql.rll
From the disk: \1033_ENU_LP\x64\Setup\sql_engine_core_shared_loc_msi\PFiles\SqlServr\110\Shared\Res\1033\msxmlsql.rll
To : \Program Files\Microsoft SQL Server\110\Shared\Resources\1033

Looking to solution it seems like SQL Server 2012 installation fails to copy the above files to the target installation folder on the server.

After the above steps done, CRM 2011 Installation worked like a charm.  J

Hope you find above solution helpful. Kindly provide your valuable comments or suggestions on this post.

Thank You !!! J

The Word breaker for language -1 is not installed - The full-text component is not installed on the specified SQL Server - CRM 2011 Installation

Hello,

During installation of CRM 2011, I faced a wired type of warning along with a straight forward error as below during the System Check stage of installation wizard.

Warning: The Word breaker for language -1 is not installed.

Error: The full-text component is not installed on the specified SQL Server.

Error is a straight forward message that I have missed to install "Full-text Search" component as a part of my SQL Server insallation. But I was not able to understand the weird warning above as it doesn't say anything meaningful and so was not sure about how can this impact CRM Installation.

But later I understood that the warning and an error message both are somehow interlinked with each other.

Solution:

• Start SQL Server installation again by running the Setup wizard.
• Under Installation menu, select "New SQL Server stand-alone installation or add features to existing installation".
• After the new installation wizard starts, Under Installation Type menu, Select "Add features to existing SQL Server 2012" and Click Next.
• Check the check box "Full-Text Semantic Extractions for Search".
• Click Next till the end of the wizard to complete the installation of a new component.

Voila !!! Error message got vanished but I was still getting the above Warning and that was driving me crazy as it was very vague and later impact was unknown.

After searching for this on web, I thank for this link which gave a clear action to be taken to void this warning.

Solution was very simple and straight unlike the message itself.

Answer is : Just Restart the server machine after you install "Full-text Search" component and then start CRM 2011 installation all over again and the you will notice the Warning is gone.

Hope this Error and Warning will not drive you crazy and this post helps you quickly resolve it.

Kindly provide your valuable comments, suggestions or any issue you face while installing CRM 2011.

Thank You!!! J

Step By Step Guide – Installation of CRM 2011 on Windows Server 2012

Hello,

It’s been really a long period I have updated my blog for CRM. In this post we will go through the Step by Step procedure I used to successfully Install CRM 2011 over Windows Server 2012 with SQL Server 2012 installed.

With Update Rollup 13 released by Microsoft, CRM 2011 is now officially supported for Windows Server 2012 with AD FS 2.1. To install UR 13 on Windows Server 2012, it is mandatory to install Self-Healing Setup (SHS) which was released in April this year.

During the installation wizard of CRM 2011 on Windows server 2012, if the server has Active Internet connection then Self-Healing Setup will be downloaded by itself as a part of Windows Update but sometimes it fails to do so and creates problem during the further installation so there is a manual way to point the installation wizard to the SHS setup and we will go through the manual steps. If anyone faces such issues select the manual steps for installation of CRM 2011. I got much help on the manual step of installation from this Blog as well as this Microsoft support link which I am referring again below as a ready reference.

This will be a Single server deployment with AD DS, AD FS, CRM and SQL Server 2012 with SSRS all installed on single server. Although as per the Implementation Guide, Microsoft does not recommends installing CRM 2011 on Domain controller machine unless it is running Windows Small Business Server 2008.

Prerequisites: Below mentioned setups and server roles should be installed prior to start with CRM 2011 Installation

• Active Directory Domain Services.
• SQL Server 2012 with Full text search feature.
• SQL Server Reporting Services installed and configured. (Test Report Server URL and Report Manager URL successfully using browser)
• Internet Information Services (IIS).
• Active Directory Federation Services 2.1 (It is good as a pre-requisite but you can install and configure this after CRM 2011 installation as well).

So without waiting much on this lets start the installation of CRM 2011 on Windows Server 2012.

Step 1: Download below setups and place them under a common folder. Let us take D:\CRMInstall as an example for this article.

1. CRM 2011 Setup from Microsoft Download Site here and place it under D:\CRMInstall
2. Download Self-Healing Setup (SHS) from Microsoft update Catalog here (This link will work on Internet Explorer Only). Click on “Add” button and click on the “View Basket” link. Download the setup in the basket and place it under D:\CRMInstall\SHS (We will create a new sub folder here for the extraction of the setup). Extract the cab file as per your language code. Here we will use English (1033) and copy the extracted .msp package file at D:\CRMInstall.

3. For CRM 2011 Setup to use the downloaded SHS update package instead of online downloading, we will need to create a config file. You can find detailed information about the same here. We will use a simple XML file to point out setup to use the downloaded SHS installer.
   Create an XML extension file (config.xml) with below XML code in it. Place the config file at D:\CRMInstall location. (Please make sure to change the path if you have kept the .msp at different location)


4. Download Update Rollup 13 for Server as well as SSRS Connector from here and place it under folder D:\CRMInstall\UR13 (Sub-Folder).

After Step 1, you will be having 3 files CRM 2011 Setup, SHS Update Package installer and config.xml file together at D:\CRMInstall

Step 2: To start CRM 2011 Installation, double click the CRM 2011 Setup and extract all the required installation files to D:\CRMInstall\Setup (Sub-Folder for CRM Setup Files).

For pointing CRM installer to use the downloaded SHS setup and prevent it to download it online, we need to run the CRM Setup through command prompt.

1. Open Command Prompt with Administrator privileges and traverse to CRM Setup path (here: D:\CRMInstall\Setup)
2. Enter below command and hit Enter to start the setup.

Using above command, it will launch CRM 2011 Setup Wizard as below.

Step 3: Walk through CRM 2011 Setup Wizard.

1. First screen of the setup wizard will be as below which means the setup will use the downloaded SHS setup installer and will not download it from internet. Click Next.


2. Enter the CRM Product Key. Click Next.


3. Check the “I accept this license agreement” checkbox. Click I Accept.


4. If you don’t have the required components already installed then Setup will download it and install them. Click on Install button and after installation Click Next. (If you already have them installed this step will be skipped).


5. Select the Installation Directory. Click Next.


6. Select “Create a new deployment” radio button and select the SQL Server 2012 instance, from the drop down box, on which you want to keep your CRM Database. Click next.


7. Select the AD Organizational Unit of your AD tree. AD OU must be same domain as the installation CRM Server is in.


8. Specify the service Accounts for each of the service. Since this is a Single server deployment, we will just use NETWORK SERVICES account for all four services. However if you have multi-server environment then it is advised to you separate service accounts for each of the services. Kindly refer CRM 2011 Implementation Guide here for details.


9. Select the Website that will be created in IIS for MS CRM 2011. If you are planning for IFD, I will recommend you to create a new web site on a different port other than “Default Web Site”. The reason behind this is that IFD needs AD FS and AD FS will be installed by default on “Default Web Site” and will use default HTTPS port 443.


10. Enter the Email router server name and Click Next. (You can even keep it blank and move ahead if you are planning to install Email Router later). Click Next.

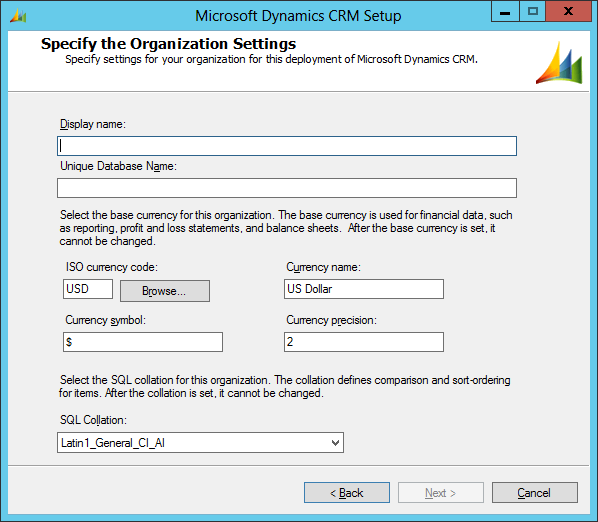

11. Enter Display Name for the Organization Name and Unique Database Name (will be automatically populate from Display Name appending “_MSCRM”). Select the default Currency name, code, symbol and precision for your deployment. Remember this will be used as the base currency for your organization. Click Next.


12. Enter the Report server URL. Click Next.


13. System check will verify all the components. If you have any error in this, you will have to resolve it before moving ahead.
    Click next if all the steps are successful without any Error.


14. CRM Installation will be started and you will see the Setup Complete screen as below. Click on Finish to start the installation of SSRS connector for CRM 2011. (If you unchecked the check box then you can install it later from the installation directory where the setup files were extracted in above Step 2)


15. After CRM 2011 and SSRS Connector installation is completed. Install the UR 13 for CRM 2011 Server as well as SSRS Connector downloaded above in Step 1 (4)

This concludes the CRM 2011 installation on Windows Server 2012.

Kindly provide your valuable comments, suggestions or any issue you face while installing CRM 2011.

Thank You!!! J
